Forms & Blueprints

Default taxonomies for specific pages

Solved by pamtbaau View solution

Started by Anders 7 years ago · 13 replies · 2280 views
7 years ago

First time user. Been customizing with grav for some months.

I would like to add default taxonomies to blueprints for specific pages. Found this and was so happy.

https://learn.getgrav.org/content/taxonomy#adding-custom-taxonomy-values-in-default-and-options

But I can not get it to work, is there a real-world example of a blueprint-file that someone can share and teach me ?

I have found other solutions, such as adding these values hidden, or adding fields under admin overrides below the advanced tab when using Grav Admin Plugin but as the documentation suggests I would prefer this solution.

Is it possible to specify defaults that are then editable from admin ? For example, an editor of the webpage creates a page and get's the default values set but is then able to add (or maybe remove) categorys, tags manually.

7 years ago

@grelle:
But I can not get it to work

Please share which steps you have taken and what happened. We might then better understand/reproduce the issue...

7 years ago

Of course. Sorry for that.

  1. Download and fresh install of Grav 1.5.6 with Admin-plugin and theme Quark on a Mac with MAMP.

  2. Edited ../user/themes/quark/blueprints/blog.yaml with the piece of code from the docs (https://learn.getgrav.org/content/taxonomy#adding-custom-taxonomy-values-in-default-and-options). The section below about "taxonomies" was added by me.

    YAML
    extends@: default
child_type: item

rules:
slug:
pattern: "[a-z][a-z0-9_\-]+"
min: 2
max: 80

    taxonomies:
    fields:
    header.taxonomy:
    default:
    category: ['blog','page']
    tag: ['test']
    options:
    category: ['grav']
    validate:
    type: commalist

  3. This above file (blog.yaml) is cut in this post after my edit because I didn't manage to paste it all as preformatted text.

  4. Made sure that taxonomies are set in site.yaml (../system/config).

  5. Created both pages with blog or item setting.

  6. Saved the pages, returned and doublechecked both forms and frontmatter in admin (via expertmode) and finally via VSCode the Markdown files but there was no category set.

  7. I have also experimented with adding this piece of code to forms and/or advanced tab/overrides

7 years ago

@grelle Blueprints are not the easiest part of Grav. And especially the pickiness of Yaml on indentations, make it hard to create correct blueprints.

It is hard to judge from the snippet you copied, but it seems the definition of the blueprint needs a bit more attention... May I suggest to have a look at the documentation about Forms?

To create a correct form, follow the following steps:

  • First have a look at the default definition of 'default.yaml' in folder '/system/blueprints/pages/'. That will give an idea of the layout of the default template in Admin. Quark has extended that blueprint in 'blog.yaml'.

  • The blueprint has the following structure:

    YAML
    title: PLUGIN_ADMIN.DEFAULT

rules:
slug:
  pattern: '[a-zA-Zа-яA-Я0-9_\-]+'
  min: 1
  max: 200

form:
validation: loose

fields:

  tabs:
    type: tabs
    active: 1

    fields:     <-- Below you will find the definitions for tab fields
      content:  <-- Tab definition for tab 'Content' at top of page in Admin
        type: tab
        title: PLUGIN_ADMIN.CONTENT

        fields:  <-- Below are the definitions for fields
           ...

       options:  <-- Tab definition for tab 'Options' at top of page in Admin
          type: tab
          title: PLUGIN_ADMIN.OPTIONS

          fields:
             ...

  • If you want the Taxonomy field in the 'Options' tab (as it is by default), then add the following definition right below 'fields' below 'active 1' in '/user/themes/quark/blueprints/blog.yaml'. That is probably line 17 in Quark v1.2.5:

    YAML
    options:
type: tab
title: PLUGIN_ADMIN.OPTIONS

fields:
  taxonomies:   <-- Copied from the example in the docs
    fields:
      header.taxonomy:
        default:
          category: ['blog','page']
          tag: ['test']
        options:
          category: ['grav']
        validate:
          type: commalist

    Make sure you apply the right indentation...

Almost forgot... Don't make these changes inside the Quark theme, but create an inherited theme for these changes. If you don't you will loose the changes when Quark gets updated.

Hope this helps...

last edited 12/30/18 by pamtbaau
7 years ago

Thankyou for your kind help. I feel stupid because I can not get it to work as I understand that should work when reading the docs. My understanding is that it should keep the original "taxonomy" field and just add the default values when creating the page.

This is the whole of my ../system/blueprints/pages/default.yaml after trying my best to edit at your proposal.

[code]
title: PLUGIN_ADMIN.DEFAULT

rules:
slug:
pattern: '[a-zA-Zа-яA-Я0-9_-]+'
min: 1
max: 200

form:
validation: loose

fields:

YAML
tabs:
  type: tabs
  active: 1

  fields:
    content:
      type: tab
      title: PLUGIN_ADMIN.CONTENT

      fields:
        xss_check:
          type: xss

        header.title:
          type: text
          autofocus: true
          style: vertical
          label: PLUGIN_ADMIN.TITLE

        content:
            type: markdown
            validate:
              type: textarea

        header.media_order:
          type: pagemedia
          label: PLUGIN_ADMIN.PAGE_MEDIA

    options:
      type: tab
      title: PLUGIN_ADMIN.OPTIONS

      fields:
        taxonomies:
          fields:
            header.taxonomy:
              default:
                category: ['blog','page']
                tag: ['test']
              options:
                category: ['grav']
              validate:
                type: commalist

        publishing:
          type: section
          title: PLUGIN_ADMIN.PUBLISHING
          underline: true

          fields:
            header.published:
              type: toggle
              toggleable: true
              label: PLUGIN_ADMIN.PUBLISHED
              help: PLUGIN_ADMIN.PUBLISHED_HELP
              highlight: 1
              size: medium
              options:
                1: PLUGIN_ADMIN.YES
                0: PLUGIN_ADMIN.NO
              validate:
                type: bool

            header.date:
              type: datetime
              label: PLUGIN_ADMIN.DATE
              toggleable: true
              help: PLUGIN_ADMIN.DATE_HELP

            header.publish_date:
              type: datetime
              label: PLUGIN_ADMIN.PUBLISHED_DATE
              toggleable: true
              help: PLUGIN_ADMIN.PUBLISHED_DATE_HELP

            header.unpublish_date:
              type: datetime
              label: PLUGIN_ADMIN.UNPUBLISHED_DATE
              toggleable: true
              help: PLUGIN_ADMIN.UNPUBLISHED_DATE_HELP

            header.metadata:
              toggleable: true
              type: array
              label: PLUGIN_ADMIN.METADATA
              help: PLUGIN_ADMIN.METADATA_HELP
              placeholder_key: PLUGIN_ADMIN.METADATA_KEY
              placeholder_value: PLUGIN_ADMIN.METADATA_VALUE

    advanced:
      type: tab
      title: PLUGIN_ADMIN.ADVANCED

      fields:
        columns:
          type: columns
          fields:
            column1:
              type: column
              fields:

                settings:
                  type: section
                  title: PLUGIN_ADMIN.SETTINGS
                  underline: true

                folder:
                  type: text
                  label: PLUGIN_ADMIN.FOLDER_NAME
                  validate:
                    rule: slug

                route:
                  type: parents
                  label: PLUGIN_ADMIN.PARENT
                  classes: fancy

                name:
                  type: select
                  classes: fancy
                  label: PLUGIN_ADMIN.PAGE_FILE
                  help: PLUGIN_ADMIN.PAGE_FILE_HELP
                  default: default
                  data-options@: '\Grav\Common\Page\Pages::pageTypes'

                header.body_classes:
                  type: text
                  label: PLUGIN_ADMIN.BODY_CLASSES

            column2:
              type: column

              fields:
                order_title:
                  type: section
                  title: PLUGIN_ADMIN.ORDERING
                  underline: true

                ordering:
                  type: toggle
                  label: PLUGIN_ADMIN.FOLDER_NUMERIC_PREFIX
                  help: PLUGIN_ADMIN.FOLDER_NUMERIC_PREFIX_HELP
                  highlight: 1
                  options:
                    1: PLUGIN_ADMIN.ENABLED
                    0: PLUGIN_ADMIN.DISABLED
                  validate:
                    type: bool

                order:
                  type: order
                  label: PLUGIN_ADMIN.SORTABLE_PAGES
                  sitemap:

        overrides:
          type: section
          title: PLUGIN_ADMIN.OVERRIDES
          underline: true

          fields:

            header.dateformat:
              toggleable: true
              type: select
              size: medium
              selectize:
                create: true
              label: PLUGIN_ADMIN.DEFAULT_DATE_FORMAT
              help: PLUGIN_ADMIN.DEFAULT_DATE_FORMAT_HELP
              placeholder: PLUGIN_ADMIN.DEFAULT_DATE_FORMAT_PLACEHOLDER
              data-options@: '\Grav\Common\Utils::dateFormats'
              validate:
                type: string

            header.menu:
              type: text
              label: PLUGIN_ADMIN.MENU
              toggleable: true
              help: PLUGIN_ADMIN.MENU_HELP

            header.slug:
              type: text
              label: PLUGIN_ADMIN.SLUG
              toggleable: true
              help: PLUGIN_ADMIN.SLUG_HELP
              validate:
                message: PLUGIN_ADMIN.SLUG_VALIDATE_MESSAGE
                rule: slug

            header.redirect:
              type: text
              label: PLUGIN_ADMIN.REDIRECT
              toggleable: true
              help: PLUGIN_ADMIN.REDIRECT_HELP

            header.process:
              type: checkboxes
              label: PLUGIN_ADMIN.PROCESS
              toggleable: true
              config-default@: system.pages.process
              default:
                markdown: true
                twig: false
              options:
                markdown: Markdown
                twig: Twig
              use: keys

            header.twig_first:
              type: toggle
              toggleable: true
              label: PLUGIN_ADMIN.TWIG_FIRST
              help: PLUGIN_ADMIN.TWIG_FIRST_HELP
              highlight: 0
              options:
                1: PLUGIN_ADMIN.YES
                0: PLUGIN_ADMIN.NO
              validate:
                type: bool

            header.never_cache_twig:
              type: toggle
              toggleable: true
              label: PLUGIN_ADMIN.NEVER_CACHE_TWIG
              help: PLUGIN_ADMIN.NEVER_CACHE_TWIG_HELP
              highlight: 0
              options:
                1: PLUGIN_ADMIN.YES
                0: PLUGIN_ADMIN.NO
              validate:
                type: bool

            header.child_type:
              type: select
              toggleable: true
              label: PLUGIN_ADMIN.DEFAULT_CHILD_TYPE
              default: default
              placeholder: PLUGIN_ADMIN.USE_GLOBAL
              data-options@: '\Grav\Common\Page\Pages::types'

            header.routable:
              type: toggle
              toggleable: true
              label: PLUGIN_ADMIN.ROUTABLE
              help: PLUGIN_ADMIN.ROUTABLE_HELP
              highlight: 1
              options:
                1: PLUGIN_ADMIN.ENABLED
                0: PLUGIN_ADMIN.DISABLED
              validate:
                type: bool

            header.cache_enable:
              type: toggle
              toggleable: true
              label: PLUGIN_ADMIN.CACHING
              highlight: 1
              options:
                1: PLUGIN_ADMIN.ENABLED
                0: PLUGIN_ADMIN.DISABLED
              validate:
                type: bool

            header.visible:
              type: toggle
              toggleable: true
              label: PLUGIN_ADMIN.VISIBLE
              help: PLUGIN_ADMIN.VISIBLE_HELP
              highlight: 1
              options:
                1: PLUGIN_ADMIN.ENABLED
                0: PLUGIN_ADMIN.DISABLED
              validate:
                type: bool

            header.debugger:
              type: toggle
              toggleable: true
              label: PLUGIN_ADMIN.DEBUGGER
              help: PLUGIN_ADMIN.DEBUGGER_HELP
              highlight: 1
              options:
                1: PLUGIN_ADMIN.ENABLED
                0: PLUGIN_ADMIN.DISABLED
              validate:
                type: bool

            header.template:
              type: text
              toggleable: true
              label: PLUGIN_ADMIN.DISPLAY_TEMPLATE

            header.append_url_extension:
              type: text
              label: PLUGIN_ADMIN.APPEND_URL_EXT
              toggleable: true
              help: PLUGIN_ADMIN.APPEND_URL_EXT_HELP

        routes_only:
          type: section
          title: PLUGIN_ADMIN.ROUTE_OVERRIDES
          underline: true

          fields:

            header.routes.default:
              type: text
              toggleable: true
              label: PLUGIN_ADMIN.ROUTE_DEFAULT

            header.routes.canonical:
              type: text
              toggleable: true
              label: PLUGIN_ADMIN.ROUTE_CANONICAL

            header.routes.aliases:
              type: array
              toggleable: true
              value_only: true
              size: large
              label: PLUGIN_ADMIN.ROUTE_ALIASES

        admin_only:
          type: section
          title: PLUGIN_ADMIN.ADMIN_SPECIFIC_OVERRIDES
          underline: true

          fields:

            header.admin.children_display_order:
              type: select
              label: PLUGIN_ADMIN.ADMIN_CHILDREN_DISPLAY_ORDER
              help: PLUGIN_ADMIN.ADMIN_CHILDREN_DISPLAY_ORDER_HELP
              toggleable: true
              classes: fancy
              default: 'collection'
              options:
                'default': 'Ordered by Folder name (default)'
                'collection': 'Ordered by Collection definition'

            header.order_by:
              type: hidden

            header.order_manual:
              type: hidden
              validate:
                type: commalist

            blueprint:
              type: blueprint

[/code]

I did try with the original "taxonomies" code present and removed, it does produce the same result. I did remove it because VSCode with YAML plugin from RedHat warned me about "duplicate key".

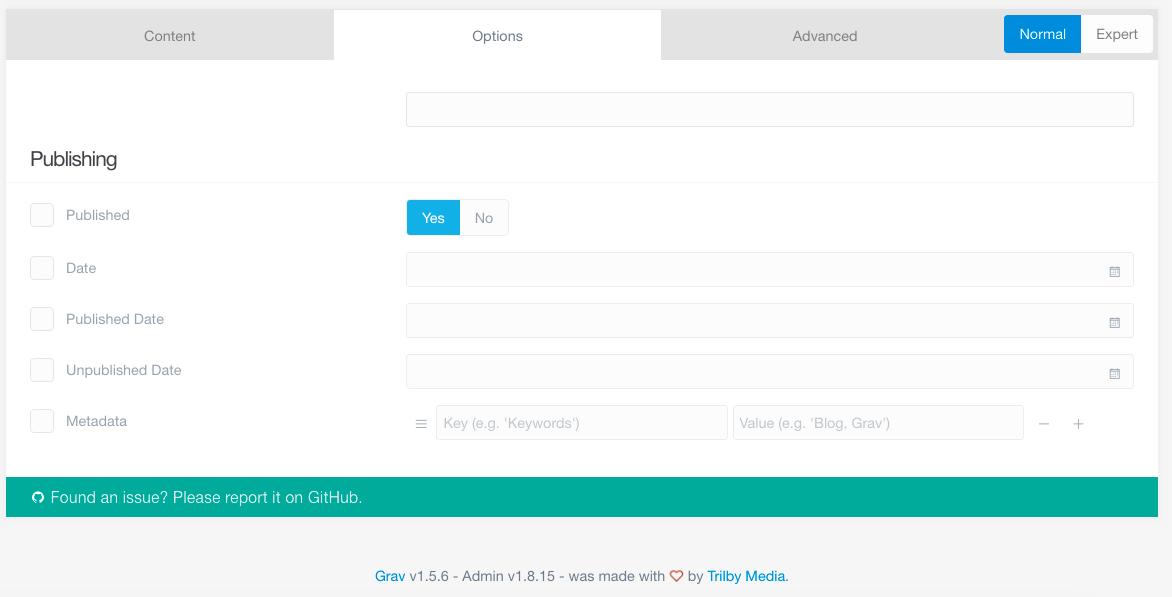

The result is, original taxonomy fields are gone in admin, and there is a single row (see screenshot) with input field at the top of "options" tab without label and no predefined data, neither any options...

There is also no default set data in frontmatter for the pages I create.

grav-admin-blueprint|690x351

Thankyou for your heads-up on creating childtheme and so on, I'm aware of that. Right now I'm just stuck on a as far as I can see pretty basic feature 🙂

7 years ago

@grelle, I may have lead you astray by referring to '/system/blueprints/pages/default.yaml' as a point of reference...

The blueprint '/user/themes/quark/blueprints/blog.yaml' is derived from 'default.yaml' and therefor you need to know how 'default.yaml' looks like and what you are 'extending'...

The changes should however be made in the derived blueprint '/user/themes/quark/blueprints/blog.yaml' as you correctly started out with in your step 2.

By 'extending' a parent blueprint, the child inherits the definitions of the parent and extends on those definitions. Since you made the changes to the parent, you have deleted some essential definitions, like section information (the title 'Taxonomies') and definitions of the field 'header.taxonomy' itself....

Bonus:
After you have mastered applying changes in Quark, you might want to take up the challenge of making the changes in your inherited theme... You might be suprised how trimmed that blueprint will look like.

7 years ago

No problem, we are moving forward 🙂

Did apply the change to '/user/themes/quark/blueprints/blog.yaml´like this:

[code]
extends@: default
child_type: item

rules:
slug:
pattern: "[a-z][a-z0-9_-]+"
min: 2
max: 80

form:
fields:
tabs:
type: tabs
active: 1

YAML
  fields:
    taxonomies:
      fields:
        header.taxonomy:
          default:
            category: ['blog','page']
            tag: ['test']
          options:
            category: ['grav']
          validate:
            type: commalist

    advanced:
      fields:
        overrides:
          fields:
            header.child_type:
              default: item
    blog:
      type: tab
      title: Blog Config

      fields:

        content_title:
          type: spacer
          title: Content Definition

        header.content.items:
          type: textarea
          yaml: true
          label: Items
          default: '@self.children'
          validate:
            type: yaml

        header.content.limit:
          type: text
          label: Max Item Count
          default: 5
          validate:
            required: true
            type: int
            min: 1

        header.content.order.by:
          type: select
          label: Order By
          default: date
          options:
            folder: Folder
            title: Title
            date: Date
            default: Default

        header.content.order.dir:
          type: select
          label: Order
          default: desc
          options:
            asc: Ascending
            desc: Descending

        header.content.pagination:
          type: toggle
          label: Pagination
          highlight: 1
          default: 1
          options:
            1: PLUGIN_ADMIN.ENABLED
            0: PLUGIN_ADMIN.DISABLED
          validate:
            type: bool

        header.content.url_taxonomy_filters:
          type: toggle
          label: URL Taxonomy Filters
          highlight: 1
          default: 1
          options:
            1: PLUGIN_ADMIN.ENABLED
            0: PLUGIN_ADMIN.DISABLED
          validate:
            type: bool

      import@:
        type: partials/blog-bits
        context: blueprints://pages

[/code]

Then went to admin and created a blog page which had the original taxonomy fields back but no predefined data, neither any options.

From the markdown-file of blog page:

[code]

title: blog100
content:
items:

  • '@self.children'
    limit: 5
    order:
    by: date
    dir: desc
    pagination: true
    url_taxonomy_filters: true

    [/code]

Created an "item" page too just for testing. No predefined (deafult) data there either...

Did I apply the changes to blog.yaml in the wrong way ? Or have I completely misunderstood the way default values should apply to "Taxonomy" ?

7 years ago

@grelle You might want to take a good look at the structure of the changes you have made. You are missing out the definition for the tab...

7 years ago

I discovered that, made changes accordingly. Cleared Grav cache (which is set to off though). Cleared webbrowser-cache. Refreshed admin and created a new blog page...

No change

'/user/themes/quark/blueprints/blog.yaml´
[code]
extends@: default
child_type: item

rules:
slug:
pattern: "[a-z][a-z0-9_-]+"
min: 2
max: 80

form:
fields:
tabs:
type: tabs
active: 1

YAML
  options:
    fields:
      taxonomies:
        fields:
          header.taxonomy:
            default:
              category: ['blog','page']
              tag: ['test']
            options:
              category: ['grav']
            validate:
              type: commalist

  advanced:
    fields:
      overrides:
        fields:
          header.child_type:
            default: item
  blog:
    type: tab
    title: Blog Config

    fields:

      content_title:
        type: spacer
        title: Content Definition

      header.content.items:
        type: textarea
        yaml: true
        label: Items
        default: '@self.children'
        validate:
          type: yaml

      header.content.limit:
        type: text
        label: Max Item Count
        default: 5
        validate:
          required: true
          type: int
          min: 1

      header.content.order.by:
        type: select
        label: Order By
        default: date
        options:
          folder: Folder
          title: Title
          date: Date
          default: Default

      header.content.order.dir:
        type: select
        label: Order
        default: desc
        options:
          asc: Ascending
          desc: Descending

      header.content.pagination:
        type: toggle
        label: Pagination
        highlight: 1
        default: 1
        options:
          1: PLUGIN_ADMIN.ENABLED
          0: PLUGIN_ADMIN.DISABLED
        validate:
          type: bool

      header.content.url_taxonomy_filters:
        type: toggle
        label: URL Taxonomy Filters
        highlight: 1
        default: 1
        options:
          1: PLUGIN_ADMIN.ENABLED
          0: PLUGIN_ADMIN.DISABLED
        validate:
          type: bool

    import@:
      type: partials/blog-bits
      context: blueprints://pages

[/code]

last edited 12/30/18 by Anders
7 years ago

I'm a bit puzzled about blog.yaml though. It has a section with a tab setting with title: "Blog config". That is not showing up in my admin of any of my pages.

[code]
blog:
type: tab
title: Blog Config
[/code]

I guess I should see that to confirm I'm in the right place searching for my taxonomy fields...

EDIT: Now I see that this is stuff that is being set in frontmatter but not editable in admin.

EDIT: This section was not visible in admin most probably of some error in my blueprint, I now see it after I managed to correctly set my blueprint.

last edited 12/30/18 by Anders
7 years ago Solution

@grelle I guess that at some point, staring any longer at code doesn't make us see what is staring in our face...

When fields have sub-fields, they have a 'fields' property that contains the definitions of the sub-fields: 'Tabs' and 'Tab' are such a fields...

Example from the docs on Tabs/Tab:

YAML
tabs:
  type: tabs
  active: 1

  fields:             <-- Containing the list of tabs (sub-fields)
    content:          <-- Start of definition of tab 'Content'
      type: tab
      title: PLUGIN_ADMIN.CONTENT

      fields:         <-- Containing the list of fields on tab 'Options'

        # .... other subfields
last edited 12/30/18 by pamtbaau
7 years ago

I now managed to get i to work! Fantastic. Thankyou for your patience!

This is my '/user/themes/quark/blueprints/blog.yaml' which adds default values and options!

[code]
extends@: default
child_type: item

rules:
slug:
pattern: "[a-z][a-z0-9_-]+"
min: 2
max: 80

form:
fields:
tabs:
type: tabs
active: 1

YAML
  fields:

    advanced:
      fields:
        overrides:
          fields:
            header.child_type:
              default: form

    options:
      fields:
        taxonomies:
          fields:
            header.taxonomy:
              default:
                category: ['my-category']
                tag: ['my-tag']
              options:
                tag: ['option-1','option-2','option-3']
              validate:
                type: commalist

    blog:
      type: tab
      title: Blog Config

      fields:

        content_title:
          type: spacer
          title: Content Definition

        header.content.items:
          type: textarea
          yaml: true
          label: Items
          default: '@self.children'
          validate:
            type: yaml

        header.content.limit:
          type: text
          label: Max Item Count
          default: 5
          validate:
            required: true
            type: int
            min: 1

        header.content.order.by:
          type: select
          label: Order By
          default: date
          options:
            folder: Folder
            title: Title
            date: Date
            default: Default

        header.content.order.dir:
          type: select
          label: Order
          default: desc
          options:
            asc: Ascending
            desc: Descending

        header.content.pagination:
          type: toggle
          label: Pagination
          highlight: 1
          default: 1
          options:
            1: PLUGIN_ADMIN.ENABLED
            0: PLUGIN_ADMIN.DISABLED
          validate:
            type: bool

        header.content.url_taxonomy_filters:
          type: toggle
          label: URL Taxonomy Filters
          highlight: 1
          default: 1
          options:
            1: PLUGIN_ADMIN.ENABLED
            0: PLUGIN_ADMIN.DISABLED
          validate:
            type: bool

      import@:
        type: partials/blog-bits
        context: blueprints://pages

[/code]

7 years ago

@grelle Celebrate the solution as long as it lasts... The next release of Quark will wipe it.

@pamtbaau:
After you have mastered applying changes in Quark, you might want to take up the challenge of making the changes in your inherited theme… You might be suprised how trimmed that blueprint will look like.

7 years ago

I will :) Thankyou for making it clear again. I and my fellow co-first-timers will of course apply this to an inherited customized theme.

Suggested topics

Topic Participants Replies Views Activity
Getting modular form to work with Typhoon template
Forms & Blueprints · by Ton Haarmans, 5 years ago
13 1144 4 months ago
Form works different on different devices
Forms & Blueprints · by Hugo Oliveira, 5 months ago
0 63 5 months ago
Include checkbox options from another file
Forms & Blueprints · by Flachy Joe, 6 months ago
9 138 6 months ago
Modular page blueprints load, but their custom fields don’t appear in Admin
Forms & Blueprints · by Augustus, 7 months ago
7 114 7 months ago
Importing blueprint stopped working (Grav 1.8)
Forms & Blueprints · by Julien, 7 months ago
10 132 7 months ago
